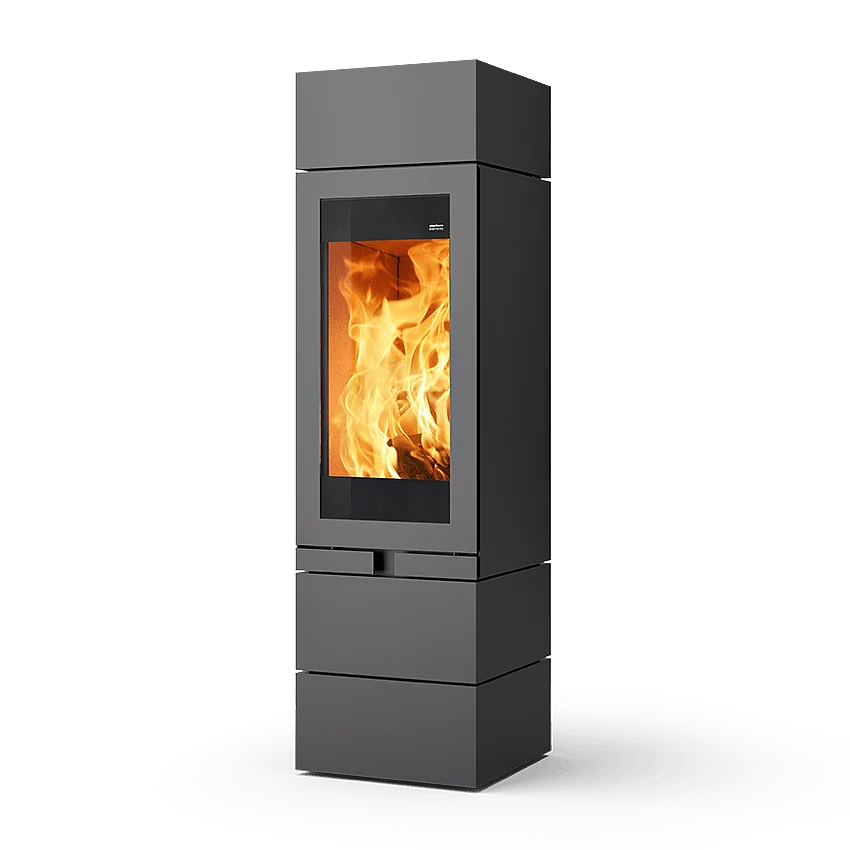

Elements 400 Front

Design by Prof. Wulf Schneider & Partner

The Elements 400 series offers the best view of the flames in a small space, combining the bold design of the front variant with a generously sized glass pane.

400 Front

400 3S

Technical data Downloads Start Configurator

Colour

Use Elements in platinum
to set a striking accent
in bright home interiors.

Caracteristic
details

Slim, elegant silhouette
Generous, flush-mounted glass pane
Modular design with boxes available in two lengths
Variable overall height
Flue pipe and external air supply concealed within the boxes

Optional integration of a catalytic converter and-
Thermostone heat-storage module within the boxes
Customized box dimensions available
Ideal for small to medium-sized rooms

Technical data

Nominal heat output	6 kW
Efficiency	≥ 75,0 %
Energy efficiency class
Room-air independent operation possible (optional)	yes
Catalytic converter (optional)	yes

We reserve the right to make technical and visual changes without announcement.

further technical details Compare models

Technical data

Elements 400 Front 2.0

Nominal heat output	6 kW
Efficiency	≥ 75,0 %
Energy efficiency class
Room-air independent operation possible (optional)	yes
Catalytic converter (optional)	yes
External fresh air supply	yes
Flue connection piece	top; side and rear (at least one box above combustion chamber necessary)
Shared chimney flues admissible	yes
Average feed pressure	0,12 mbar
Waste gas mass flow rate	5,0 g/s
Waste gas connection piece temperature	324° C
Heat accumulator Thermostone (optional)	up to 230 kg of storage mass
Rotating right / left (optional)	-
Weight	Combustion chamber: 160 kg, small box: 18 kg, big box: 24 kg
Fire box dimensions (h x w x d)	470 x 280 x 270 mm
Lining	steel
Body colour, steel	black (standard), platinum
Door hinge	left

We reserve the right to make technical and visual changes without announcement.

Compare models


	Elements 400 Front 2.0	Elements Eck 3.0	Elements 400 3S 2.0
Nominal heat output	6 kW	6,9 kW	8 kW
Efficiency	≥ 75,0 %	≥ 75,0 %	≥ 75,0 %
Energy efficiency class
Room-air independent operation possible (optional)	yes	yes	yes
Catalytic converter (optional)	yes	yes	yes
External fresh air supply	yes	yes	yes
Flue connection piece	top; side and rear (at least one box above combustion chamber necessary)	top; side and rear (at least one box above combustion chamber necessary)	top; side and rear (at least one box above combustion chamber necessary)
Shared chimney flues admissible	yes	yes	yes
Average feed pressure	0,12 mbar	0,12 mbar	0,12 mbar
Waste gas mass flow rate	5,0 g/s	7,7 g/s	8,3 g/s
Waste gas connection piece temperature	324° C	373° C	350° C
Heat accumulator Thermostone (optional)	up to 230 kg of storage mass	up to 160 kg of storage mass	up to 230 kg of storage mass
Rotating right / left (optional)	-	90° in one direction, further rotation angles upon request)	-
Weight	Combustion chamber: 160 kg, small box: 18 kg, big box: 24 kg	Combustion chamber 145 kg, small box: 18 kg, big box: 24 kg	Combustion chamber: 145 kg, small box: 18 kg, big box: 24 kg
Fire box dimensions (h x w x d)	470 x 280 x 270 mm	500 x 275 x 275 mm	470 x 280 x 270 mm
Lining	steel	steel	steel
Body colour, steel	black (standard), platinum	black (standard), platinum	black (standard), platinum
Door hinge	left	left (standard), right	left

Downloads

The freedom
is yours.

Plan your Elements stove online now.

Start Configurator

[Translate to English:] Konfigurator Hintergrundbild

Elements accessories

Intelligent solutions.

Thoughtfully designed

and precisely crafted.

Thermostone heat storage module

The skantherm Thermostone heat storage modules transform your Elements stove into a powerful heat-retaining stove.

Learn more

skantherm catalytic converter

The skantherm catalytic converter reduces gaseous emissions, increases efficiency and lowers wood consumption.

Learn more

Wooden tray

The high-quality black-lacquered wooden tray creates an elegant surface while adding a warm, inviting touch to your Elements combination. A considered detail: the tray picks up the refined shadow gap of the Elements system, giving the impression that it is floating effortlessly above the box.

Seat cushion

Use our exquisite leather and fabric cushions (made from corduroy, satin and bouclé) to transform your Elements boxes into an inviting seating area, creating your personal nook by the fireplace.

Box with a drawer or door

Fit a drawer or hinged door in oak or with a steel front to your Elements box and enjoy easy access thanks to the practical push/pull functionality.

A made-to-measure,
modular system

Our homes are as unique as we are – and every Elements can be the same.
What seems impossible with a conventional stove is amazingly easy to achieve with one of our custom-built stove designs.
